GAT ACTIVITY SYSTEM

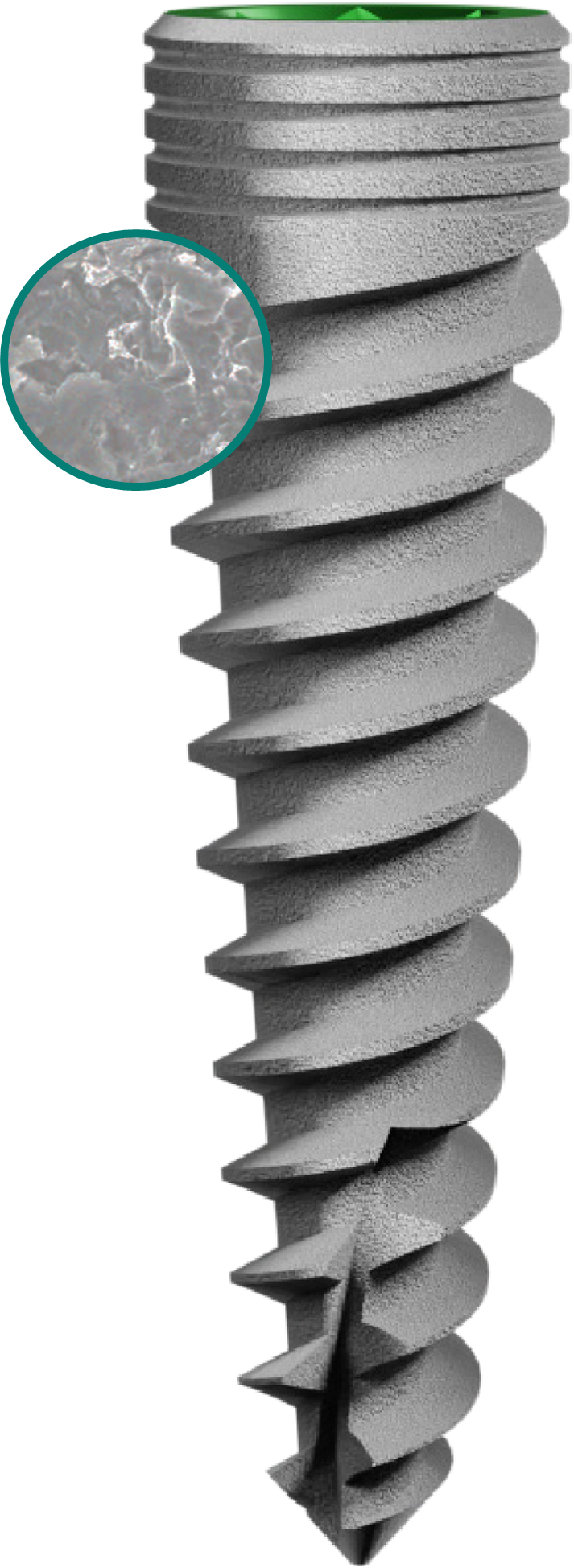

The PTERYGO implant is an alternative to avoid sinus-lifting or other grafting procedures to treat maxillary posterior region. It is a moderately tapered Internal Hexagonal connection (IHC) implant and is available in a wide range of implant diameters & lengths.
NanoFix® surface demonstrates 100% implant survival rate, even in medically compromised patients.
BONITex® coating illustrates high implant survival rates, even in immediate loading protocols.
| IMPLANT | DIAMETER (Ø) | Ø D1 | Ø D2 | LENGTH (mm) | CAT NO |
|---|---|---|---|---|---|
 | 3.5 | 2.5 | 1.72 | 16 | GR-IH3516 |
| 18 | GR-IH3518 | ||||
| 20 | GR-IH3520 | ||||
| 22 | GR-IH3522 | ||||
| 25 | GR-IH3525 | ||||
| 3.75 | 2.75 | 1.87 | 16 | GR-IH3716 |
| 18 | GR-IH3718 | ||||
| 20 | GR-IH3720 | ||||
| 22 | GR-IH3722 | ||||
| 25 | GR-IH3725 | ||||
| 4.2 | 3.2 | 2.4 | 16 | GR-IH4216 |
| 18 | GR-IH4218 | ||||
| 20 | GR-IH4220 | ||||
| 22 | GR-IH4222 | ||||
| 25 | GR-IH4225 |
- Computer-guided & Non-guided protocols:

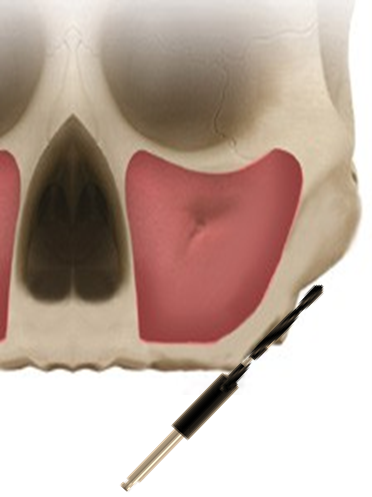

Start the osteotomy using Pterygoid drill Ø 2.0 mm at the same implant length to be inserted.

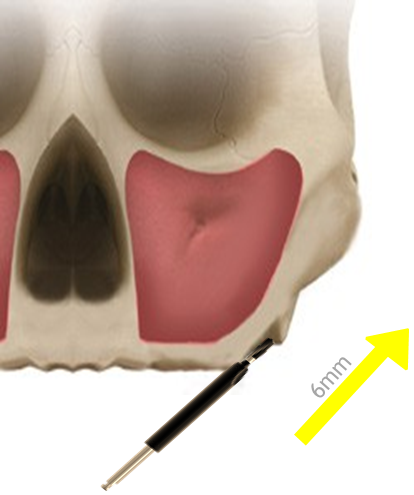

Complete the osteotomy with Pterygoid drill Ø 2.8 mm at the entrance for 6.0 mm.

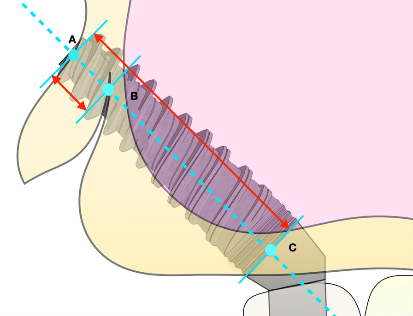

Placement positioning of the implant
- Non-guided protocol:
Start the osteotomy using Pterygoid drill Ø 2.0 mm at the same implant length to be inserted.
Continue using Pterygoid drill Ø 2.4 mm at the same implant length to be inserted.
*Complete the osteotomy with Pterygoid drill Ø 2.8 mm at the entrance for 6mm.
- Non-guided protocol:
Start the osteotomy using Pterygoid drill Ø 2.0 mm at the same implant length to be inserted.
Continue using Pterygoid drill Ø 2.4 mm at the same implant length to be inserted.
*Complete the osteotomy with Pterygoid drill Ø 3.2 mm at the entrance for 6mm.
PTERYGO™ proves how a single implant can deliver measurable, value-added benefits, and achieve remarkable results – every time! ”
Dr. Fahim Atamni, GermanySince integrating PTEYGO™ into my practice in 2019, my experience has been incredible. Its versatility allows me to treat any type of clinical scenario.”
Dr. Ernest Lucas-Taulé, SpainThe PTERYGO TM provides maximum surface area while still remaining passive, and because it’s gentle to the bone, it results in minimal bone loss during implant placement.”
