GAT ACTIVITY SYSTEM

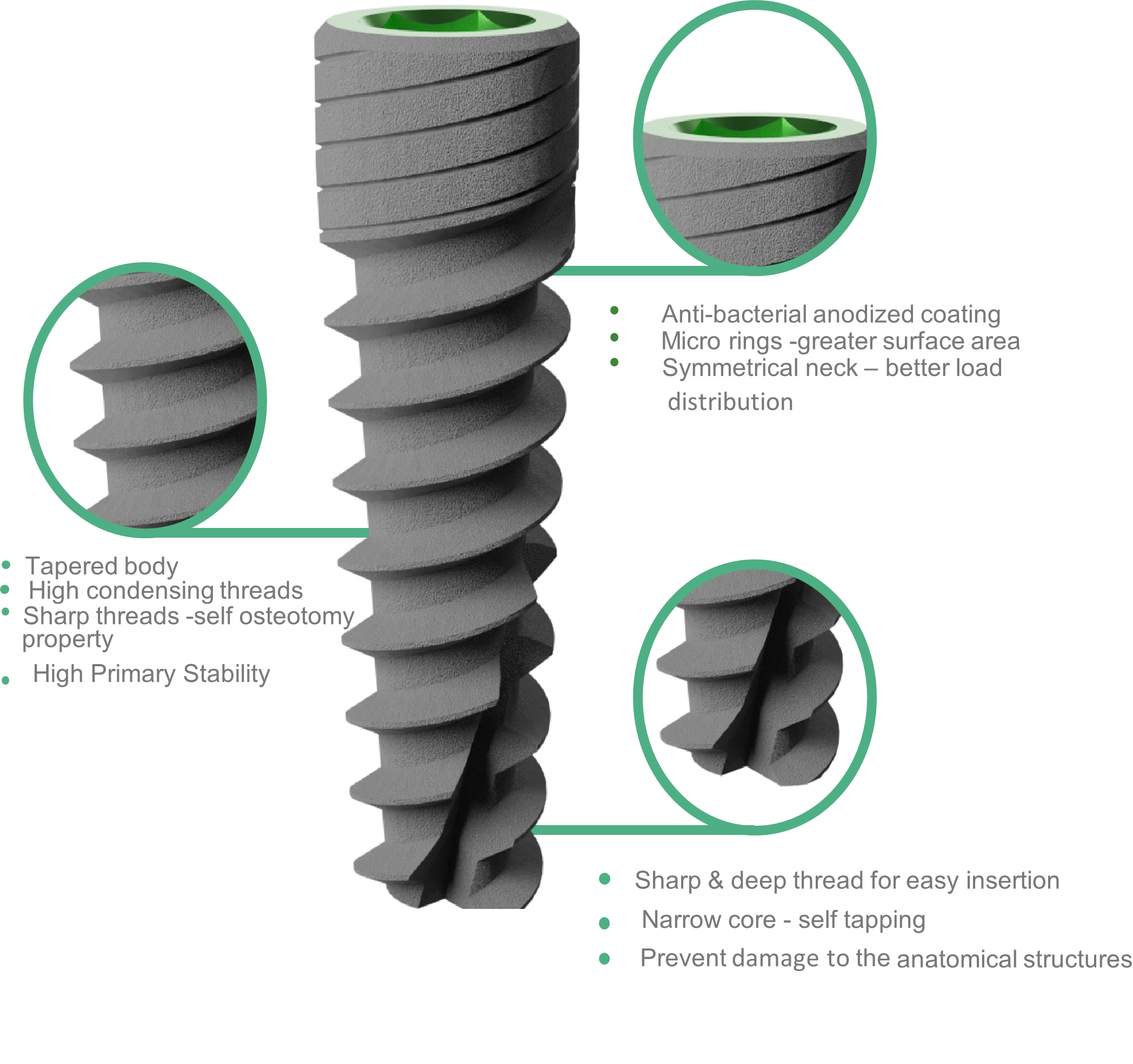

The SPIRAL implant is one of the most widely used implants by GreenAlphaTech's customers around the world, as being a legacy dental solution for a variety of clinical indications with decades of proven clinical successes. It is a tapered internal hex Connection (IHC) implant, and is available in a wide range of implant diameters & lengths.
NanoFix® surface demonstrates 100% implant survival rate, even in medically compromised patients.
BONITex® coating illustrates high implant survival rates, even in immediate loading protocols.

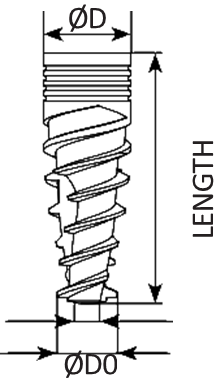

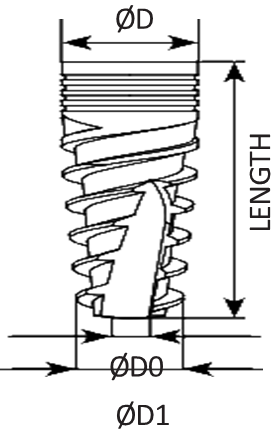

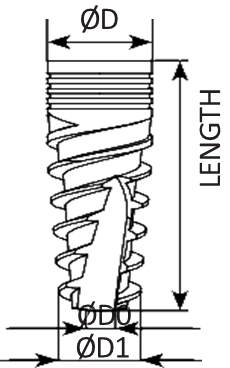

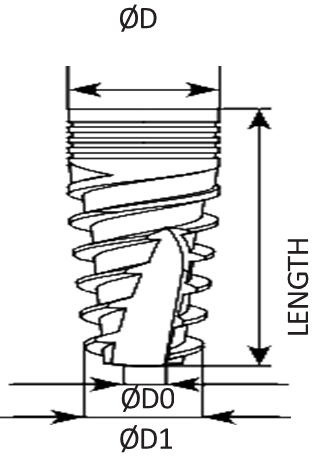

| IMPLANT | DIAMETER (Ø) | Ø D1 | Ø D2 | LENGTH (mm) | CAT NO |
|---|---|---|---|---|---|
 | 3.0 | 2.3 | 2.1 | 6 | GR-F2908 |
| 8 | GR-F2910 | ||||
| 10 | GR-F2911 | ||||
| 11.5 | GR-F2913 | ||||
| 13 | GR-F2916 | ||||
 | 3.3 | 3.1 | 2.4 | 6 | GR-F3306 |
| 8 | GR-F3308 | ||||
| 10 | GR-F3310 | ||||
| 11.5 | GR-F3311 | ||||
| 13 | GR-F3313 | ||||
| 16 | GR-F3316 | ||||
 | 3.75 | 3.65 | 3.1 | 6 | GR-F3706 |
| 8 | GR-F3708 | ||||
| 10 | GR-F3710 | ||||
| 11.5 | GR-F3711 | ||||
| 13 | GR-F3713 | ||||
| 16 | GR-F3716 | ||||
 | 4.2 | 3.95 | 3.2 | 6 | SDI-F4206 |
| 8 | SDI-F4208 | ||||
| 10 | SDI-F4210 | ||||
| 11.5 | SDI-F4211 | ||||
| 13 | SDI-F4213 | ||||
| 16 | SDI-F4216 | ||||
 | 5.0 | - | 6 | GR-F5006 | |
| 8 | GR-F5008 | ||||
| 10 | GR-F5010 | ||||
| 11.5 | GR-F5011 | ||||
| 13 | GR-F5013 | ||||
| 16 | GR-F5016 | ||||
| 6.0 | - | 6 | GR-F6006 | ||
| 8 | GR-F6008 | ||||
| 10 | GR-F6010 | ||||
| 11.5 | GR-F6011 | ||||
| 13 | GR-F6013 | ||||
| 16 | GR-F6016 |
Recommended placement torque
for Ø 3.0 mm (Slim Line)
Recommended placement torque
for Standard Line
GreenAlphaTech's SPIRAL implant is perfectly suited to meet our needs, and our patientNTNs’ needs, with a wide range of reliable and versatile solutions, and great results.”
Dr. Jorge Jofré, PortugalI enjoy using SPIRAL implants, particularly in immediate post-extraction cases. A robust self-drilling, self-taping implant, it enables perfect manual positioning.”
Dr. Anna Maria TurkeySPIRAL implants enable good primary stability, especially in problematic sites that would be unsuitable for other implant systems or implant designs. ”
Dr. Ilya Khomich, BelarusIf you have any questions or would like more information, please complete the form to be contacted by our customer service team. We are happy to assist you.
