MU implant

COMPRESSIVE MULTI-UNIT ™

MAXAMIZE IN IMMEDICAY

GAT ACTIVITY SYSTEM star

The MULTI-UNIT implant is a one-piece implant with multi-unit abutment for screw-retained restorations with a compression thread like in compressive implants. MU implant is used for cement free multiple unit restorations with immediate loading in the upper and lower jaws with adequate bone tissue. It can be used in combination with Compressive MoNoFlex and Root form implants with multi-unit abutments and allows flap and flapless placement Abutment direction can be up to 30º° relative to the other implant axis, a very useful feature in limited space unparalleled clinical cases

MAXAMIZE IN IMMEDICAY

DESIGN

implant

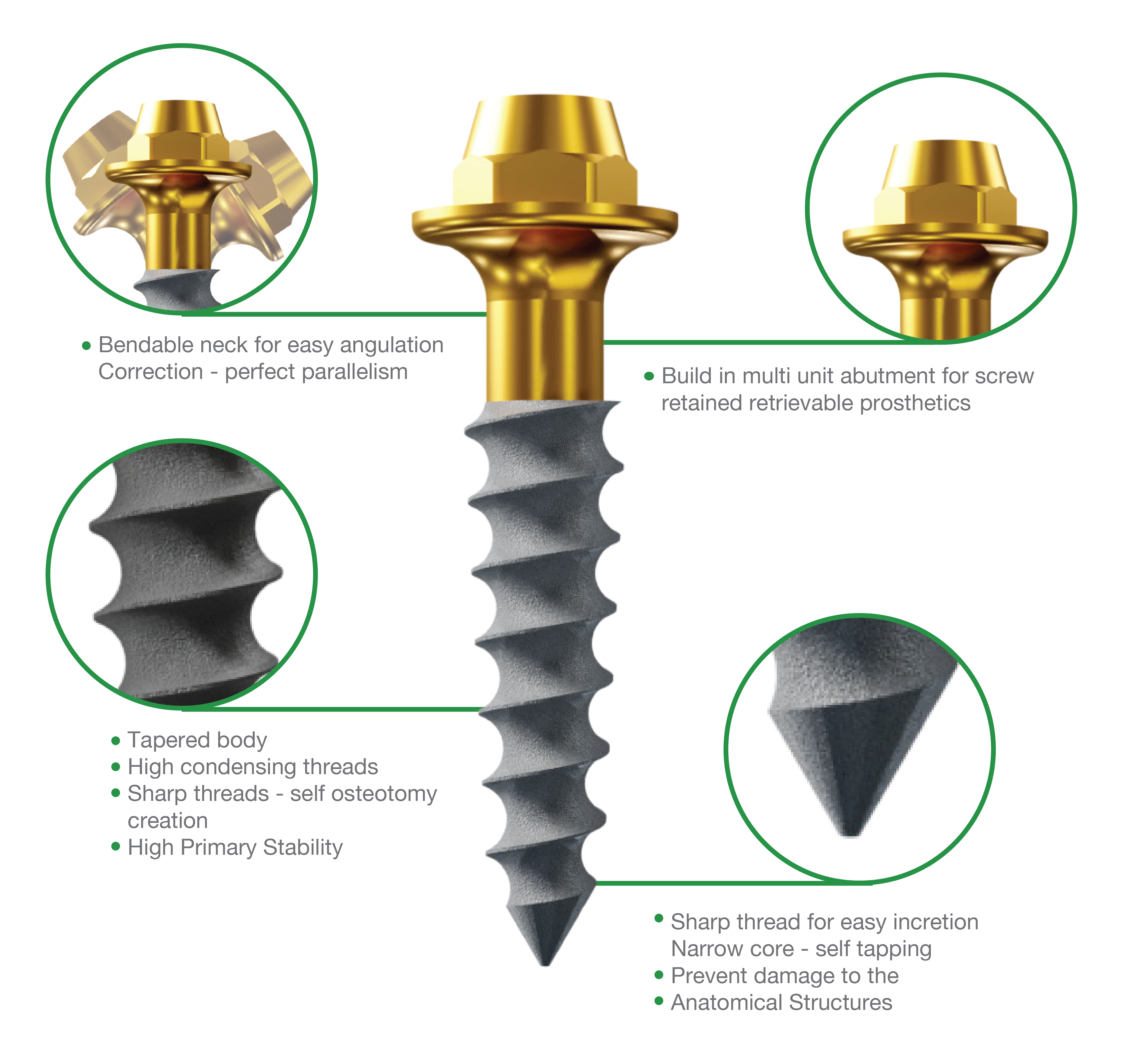

COMP.MU ™- FEATURES AND BENEFITS

MU Features
BONItex Avatar

BONITex®

SLA Surface Coatings

BONITex® coating illustrates high implant survival rates, even in immediate loading protocols.

ORDERING INFORMATION AND SIZES

IMPLANTDIAMETER (Ø)Ø D1Ø D2 LENGTH (mm)CAT NO
3.03.02.02.58GR-CC3008
10GR-CC3010
11.5GR-CC3011
13GR-CC3013
16GR-CC3016
18GR-CC3018
20GR-CC3020
3.33.32.02.58GR-CC3008
10GR-CC3010
11.5GR-CC3011
13GR-CC3013
16GR-CC3016
18GR-CC3018
20GR-CC3020
3.753.752.352.58GR-CC3008
10GR-CC3010
11.5GR-CC3011
13GR-CC3013
16GR-CC3016
18GR-CC3018
20GR-CC3020
4.24.22.852.58GR-CC3008
10GR-CC3010
11.5GR-CC3011
13GR-CC3013
16GR-CC3016
18GR-CC3018
20GR-CC3020
5.05.03.352.58GR-CC5008
10GR-CC5010
11.5GR-CC5011
13GR-CC5013
16GR-CC5016
18GR-CC5018
20GR-CC5020

STRAIGHT IMPLANTATION SEQUENCES

Throughout entire implant's length
In cases of hard bone drill through
the cortical layer
50NCM

The recommended placement torque

Ø 3.0
Ø 3.5
Ø 4.0
Ø 5.0
sequence

RELATED PRODUCTS

LAB ANALOG

LAB ANALOG

IMPLANT TRANSFER

IMPLANT TRANSFER

IMPLANT DRIVER (RATCHET)

IMPLANT DRIVER (RATCHET)
