Pterygo MU Implant

PTERYGO MU™

AN ULTIMATE SOLUTION FOR MAXILLA-FOR-ALL

GAT ACTIVITY SYSTEM star

A MINIMALLY INVASIVE APPROACH

DESIGN

A MINIMALLY INVASIVE APPROACH

Design Implant

The PTERYGO MU implant is a single piece implant with multi-unit abutment for screw-retained restorations with a compression thread like in compressive implants. Pterygo MU is designed for cement free multiple unit restorations with immediate loading in the atrophic posterior maxilla. It can be used in combination with Compressive MoNoFlex and Root form implants with multi-unit abutments and allows flap and flapless placement Abutment direction can be up to 30º° relative to the other implant axis, a very useful feature in limited space unparalleled clinical cases

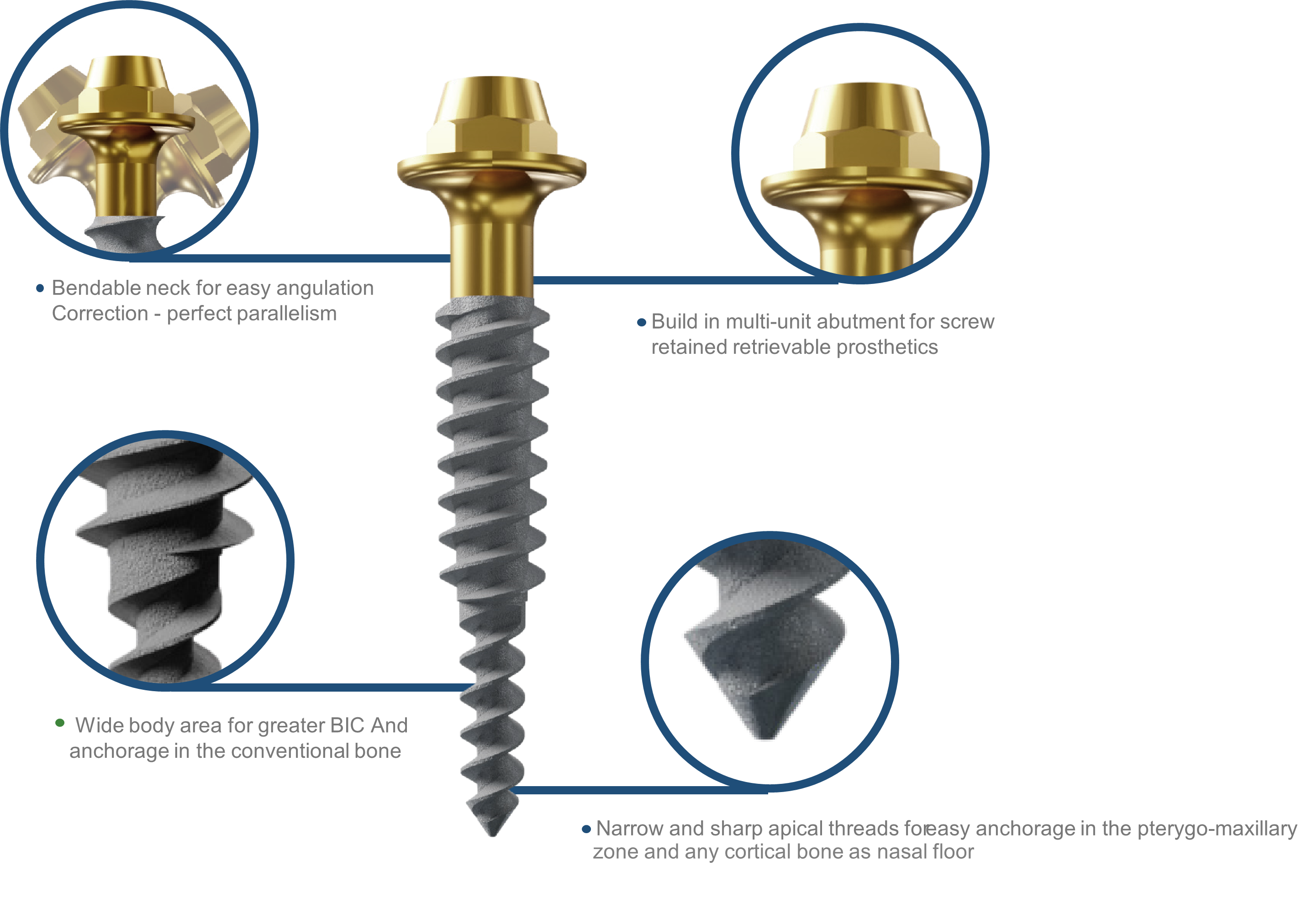

COMP.MU ™- FEATURES AND BENEFITS

Pterygo Features
BONItex Avatar

BONITex®

SLA Surface Coatings

BONITex® coating illustrates high implant survival rates, even in immediate loading protocols.

ORDERING INFORMATION AND SIZES

IMPLANTDIAMETER (Ø)Ø D1Ø D2 LENGTH (mm)CAT NO
3.53.52.51.7216GR-PMU3516
18GR-PMU3518
20GR-PMU3520
23GR-PMU3523
26GR-PMU3526
4.04.03.22.416GR-PMU4016
18GR-PMU4018
20GR-PMU4020
23GR-PMU4023
26GR-PMU4026

STRAIGHT IMPLANTATION SEQUENCES

Throughout entire implant's length
Hard bone drilling through the cortical layer
50NCM

The recommended placement torque

Ø 3.5
Ø 4.0

RELATED PRODUCTS

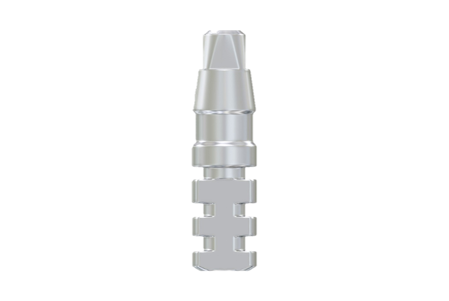

LAB ANALOG

LAB ANALOG

IMPLANT TRANSFER

IMPLANT TRANSFER

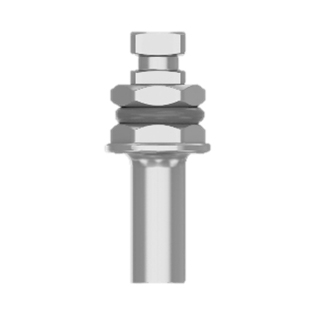

IMPLANT DRIVER (RATCHET)

IMPLANT DRIVER (RATCHET)
